1. Product positioning and core values
The SN-2340CN is a high-precision digital torque control tool designed for applications where precise control of bolt/nut tightening torque is essential (such as in automotive, mechanical, and aviation fields). With features like real-time digital display, intelligent alarms, and data tracing, it addresses the drawbacks of traditional wrenches, such as torque ambiguity and significant errors, thus ensuring quality and safety during assembly.
2. Basic parameters
Project Details
- Model: SN-2340CN
- Weight: 2.628kg (balancing durability and portability)
- Dimensions: 74 × 14 × 7.5cm (total length suitable for regular operations, compact structure)
3. Structural analysis (combined with graphic design)

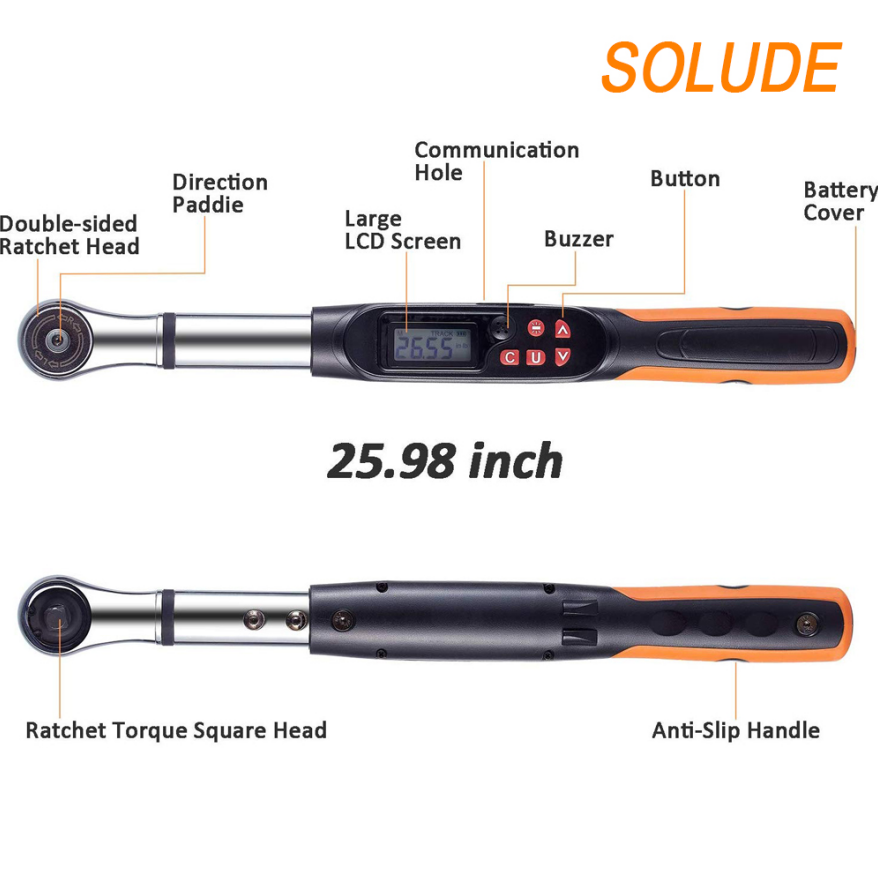

Schematic diagram of digital torque wrench structure
__HTML_TAG_0__
Head system:

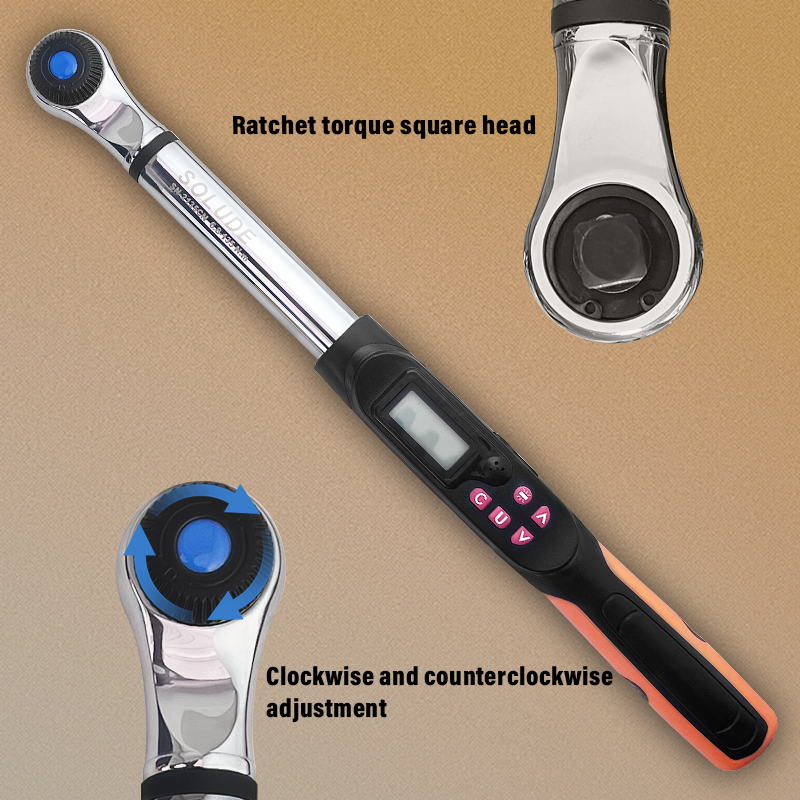

Double-sided ratchet head + ratchet torque square head: compatible with dual specifications, accommodating a wider variety of bolts and allowing for easy switching.
Central functional area:
- Direction paddles: One-click switch for forward/reverse, suitable for various fastening direction requirements.
- Large LCD screen: high-definition display of torque values, units, and working modes, remaining clear even in low-light conditions.
- Communication port: Supports torque data export (such as connecting to a computer/mobile phone) for quality analysis and traceability.
- Buzzer: Automatically sounds when the preset torque is achieved to prevent human error.
- Operation buttons (C/U/V, etc.): Enable functions like mode switching, unit conversion, and data storage/clearing.
Tail and handle:

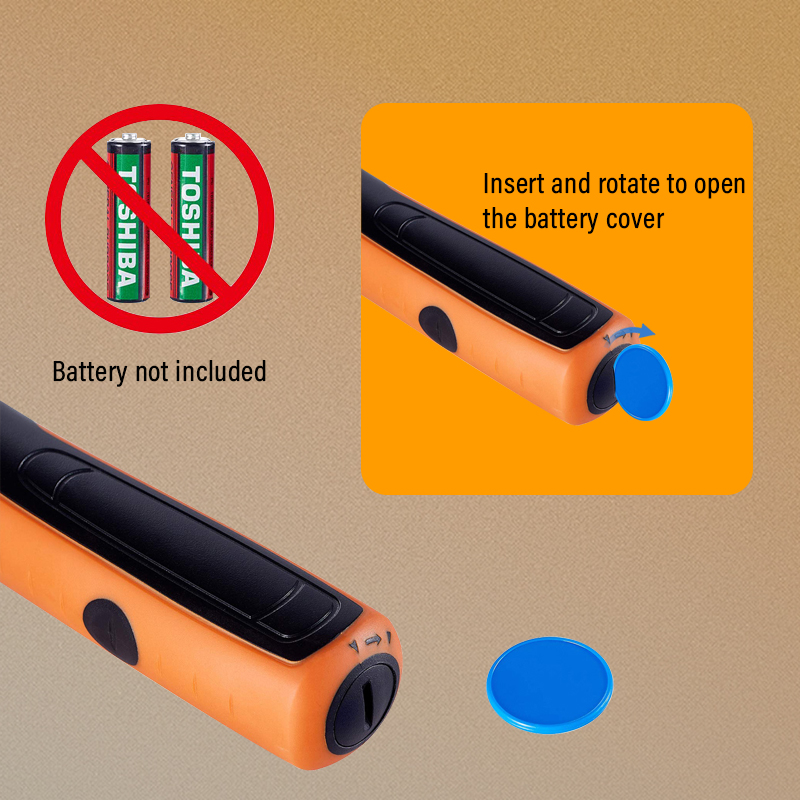

- Battery cover: easy to disassemble and replace, ensuring uninterrupted operation.
- Anti-slip handle: Ergonomic design for a comfortable grip, reducing fatigue during extended use.
4. Core functional highlights
Precise torque control:
Achieves an accuracy of ± 1% (across the full range), ensuring that each tightening meets the standard and preventing over-tightening fractures and under-tightening looseness.

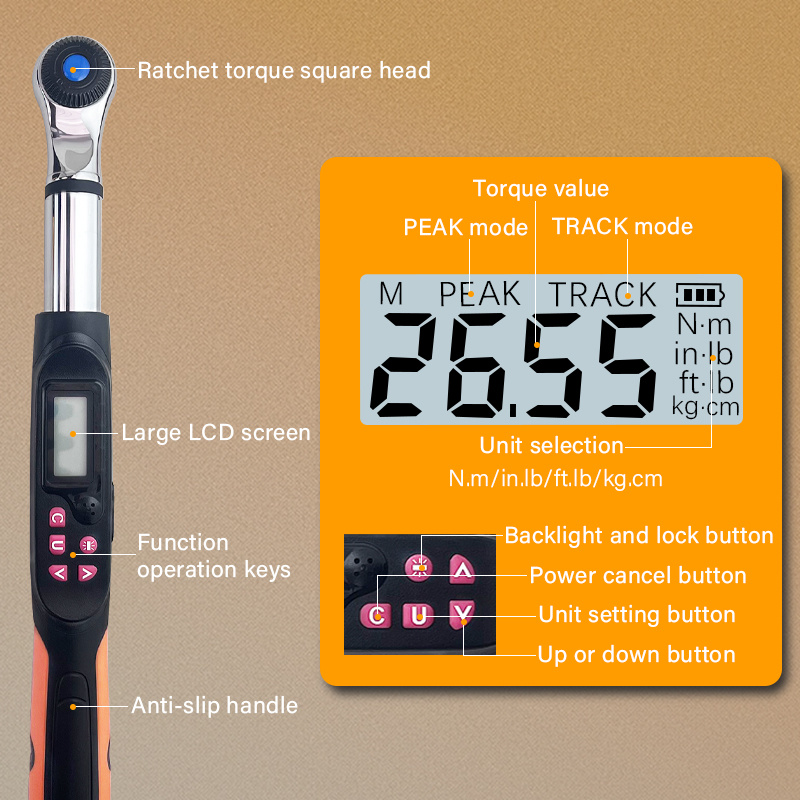

Multi-mode adaptation:
- Tracking mode: Real-time display of applied torque, dynamically monitoring the tightening process.
- Peak mode: Records the maximum torque during tightening for easy review later.
- Preset mode: Allows setting a target torque, with sound and light dual alarms (beep + screen display) when the standard is reached, ensuring standardized operation.
Flexible switching of units:
Supports units like N·m, ft·lb, kgf·cm, covering both metric and imperial standards to meet the needs of various industries.
Data management:
Equipped with a built-in storage chip that can record multiple sets of torque data; along with communication functions for data export and information management, aligning with modern production lines’ quality traceability systems.
Durability guarantee:
Constructed from chrome vanadium steel, the main body is impact-resistant, corrosion-resistant, and stable and reliable in challenging working conditions such as oil exposure and vibration.

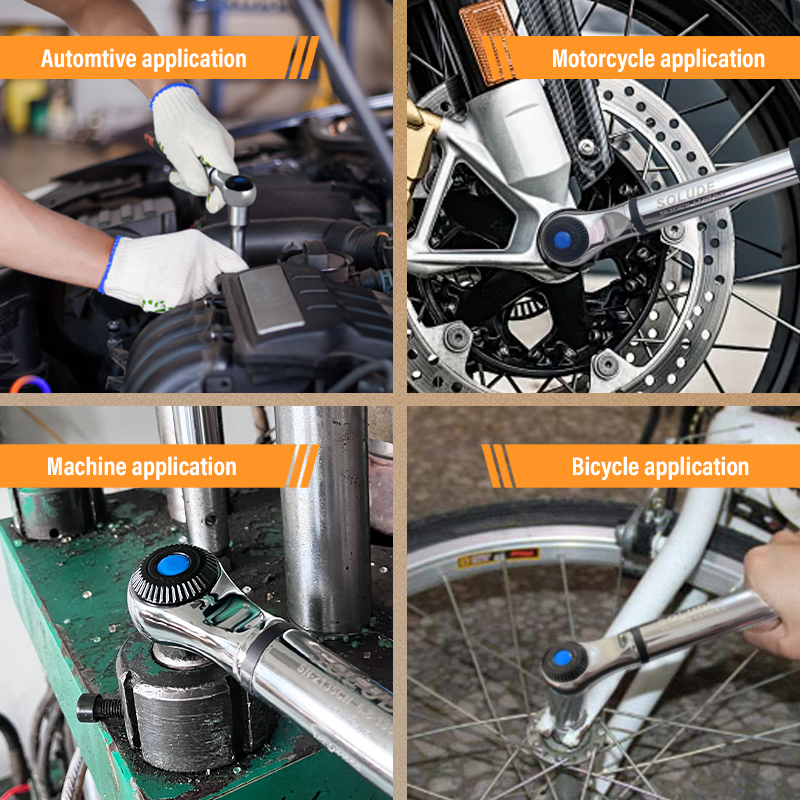

5. Typical application scenarios
- Automotive sector: for torque calibration of tire bolts, engine components, and chassis screws to meet original factory standards.
- Mechanical assembly: Ensures precision assembly of industrial equipment and machine tools for stable equipment operation.
- Aerospace: Critical connections like cabin assembly and pipeline fixation require stringent torque control for safety.
- Home appliance manufacturing: Assembly of key components such as motors and compressors to improve product lifespan and reliability.
The Premium Digital Torque Wrench SN-2340CN is an essential tool for professionals requiring precise control in tightening applications across various industries. This state-of-the-art torque wrench is particularly well-suited for automotive, mechanical, and aviation fields, where accuracy in bolt and nut tightening is critical. Its versatility allows it to be used in a range of scenarios, from assembling engines to performing maintenance on aircraft, ensuring that each fastener is tightened to the correct specifications.
The SN-2340CN addresses common issues faced with traditional torque wrenches, such as torque ambiguity and significant errors, by offering real-time digital displays and intelligent alarms. This makes it an invaluable asset in settings where maintaining quality and safety is paramount, greatly enhancing operational efficiency and reliability.
Remarkable Precision
One of the standout advantages of the SN-2340CN is its remarkable precision, achieving an accuracy of ± 1% across its full torque range. This precision is crucial for preventing issues related to over-tightening, which can lead to fractures, and under-tightening, which can result in loosening over time.
The wrench features multiple modes, including:
- Tracking Mode: Allows users to monitor applied torque in real-time.
- Peak Mode: Records the maximum torque achieved for easy reference.
- Preset Mode: Enables users to set a target torque value, with dual alarms that notify when the desired torque is reached, ensuring standardized operations.
The SN-2340CN also accommodates flexible unit switching, supporting metric and imperial measurements, making it user-friendly across diverse applications. This combination of features makes it a superior choice for those looking to improve their tightening processes.
Quality Construction
Quality is a hallmark of the SN-2340CN, constructed from high-grade chrome vanadium metal, which not only enhances its durability but also ensures its reliability in demanding environments. The craftsmanship is evident in its ergonomic design, featuring an anti-slip handle that promotes comfort during extended use, reducing user fatigue.
The large LCD screen is designed for high visibility, displaying torque values and working modes clearly, even in low-light conditions. Additionally, the wrench is equipped with a built-in storage chip capable of recording multiple sets of torque data, facilitating effective data management and traceability. This is particularly beneficial for modern production lines that prioritize quality assurance. Each SN-2340CN undergoes stringent quality checks to meet and exceed industry standards, assuring customers of its performance and longevity.
Bulk Ordering Options
For businesses looking to invest in precision tools like the SN-2340CN, bulk ordering options are available, providing more favorable pricing for larger purchases. This is an excellent opportunity for companies aiming to equip their teams with high-quality tools while also managing costs effectively.
We encourage potential buyers interested in bulk orders to contact us for further information on pricing and availability. Elevate your operational standards and ensure precision in your tightening processes by reaching out for more details about the Premium Digital Torque Wrench SN-2340CN today.
